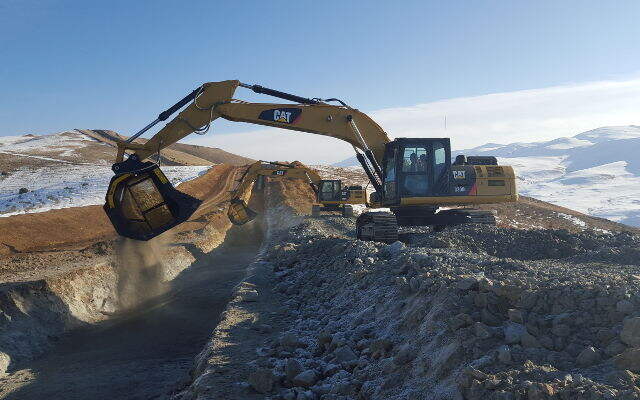

After working with excavators and earthmoving equipment for over 13 years, I can confidently say that the rotating excavator screening bucket is one of the most frequently used and worthwhile attachments in my toolkit. At first, I thought it was just a "fancy accessory with little practical use" until one time on a muddy site cleaning mixed soil and demolition debris, it completed a task in minutes that took my team hours.
This attachment not only screens soil but also simplifies site cleanup, improves the reuse rate of backfill materials, and reduces transportation costs. Attachments like flip screens and loader screeners separate materials during operation. Different models suit different needs—for example, skid steer screening buckets are ideal for confined spaces, while excavator screening buckets handle larger volumes.
To fully realize their value, installation, operation, and maintenance must all be done properly. This guide is not textbook knowledge but practical insights I have gained on job sites over the years. If you are considering buying a screening bucket or already using one, this article will help you avoid many pitfalls.
1、How Rotating Excavator Screening Buckets Work
2、How to Properly Install the Bucket
3、Common Issues and How I Solved Them
5、Small Habits That Extend Bucket Life
6、How to Choose the Right Bucket for Your Equipment
7、Frequently Asked Questions (FAQ)

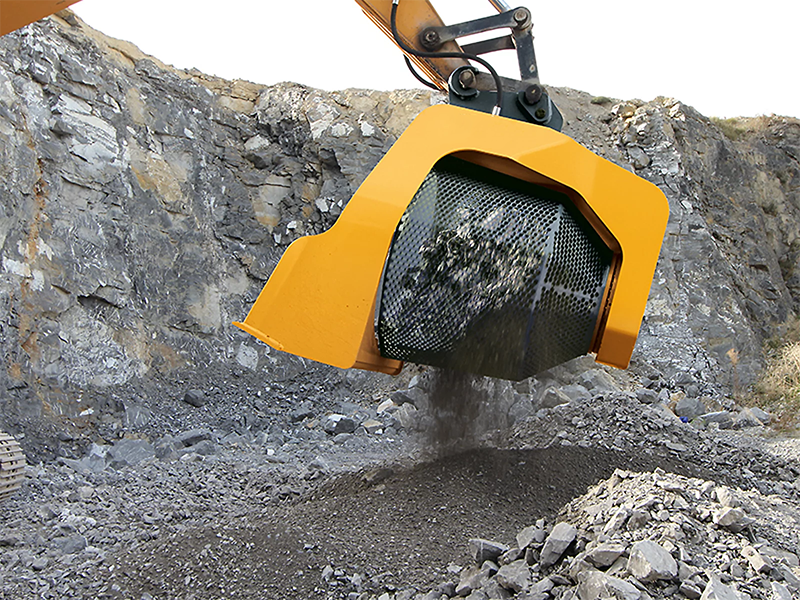

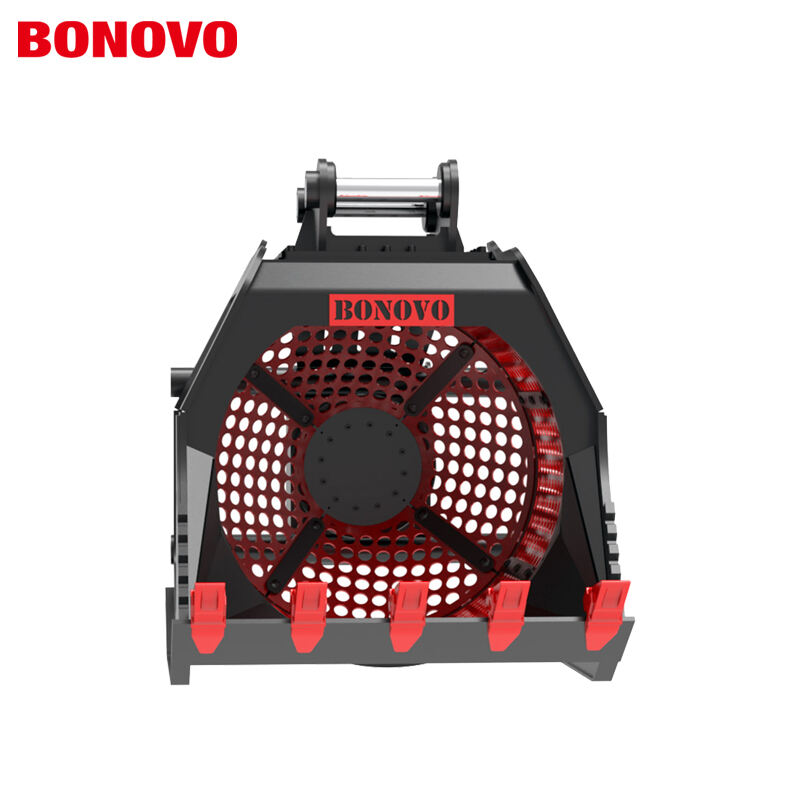

The principle is straightforward: hydraulic power drives the rotation of an internal screening drum or flip screen to automatically separate soil, rocks, and construction debris. Flip screen models can reverse-spin to self-clean, which is especially useful when working with sticky materials. Skid steer screening buckets work efficiently in tight spaces, suitable for landscaping, agriculture, and urban projects.
●From experience, I never skip these steps:
●Confirm that your equipment's hydraulic specifications match the bucket
●Clean hydraulic connectors and quick-attach points to prevent contamination
●Choose the appropriate mesh size based on the job requirements
●Connect hydraulic lines slowly to avoid air or debris ingress
●Conduct a no-load test spin for a few minutes and listen for abnormal sounds
●Refer to the manufacturer’s manual carefully, as some loader screeners have unique installation requirements
| Issue | Cause | Solution |
|---|---|---|
| Loose screen | Worn or loose bolts | Replace with high-strength bolts and tighten regularly |
| No rotation | Blocked hydraulic return line | Clean filters and hydraulic valves |
| Loud noise | Dry or damaged bearings | Lubricate or replace bearings |
| Poor screening | Clogged screen mesh | Use high-pressure washing or replace mesh with larger holes |
Tip: Always use OEM parts for flip screen attachments. Aftermarket parts may reduce performance and increase costs.
●Daily practices I follow before and after work:
●Check hydraulic pressure and connector seals before startup
●Avoid overloading, especially with wet or sticky materials that clog easily
●Clean the screening mesh after each shift
●Install wear plates when working in rocky or concrete-heavy environments
●Handle skid steer screening buckets carefully, as they are robust but more susceptible to damage than larger equipment
●Based on my experience and FlipScreen and Bobcat maintenance manuals:
●Change hydraulic oil and filters every 500 working hours
●Grease all pivot points regularly
●Match screen size to material type
●Avoid hitting sharp rocks with the bucket edge
●Thoroughly rinse off residue after each job to prevent buildup and corrosion
| Equipment Type | Recommended Bucket Type | Notes |
|---|---|---|
| Excavators under 8 tons | Small flip screen | Use fine mesh for faster screening |
| Skid steer loaders | Skid steer screening bucket | Prefer high-frequency vibration models |
| Wheel loaders | Loader screener | Choose wear-resistant drum types |
| Mini crawler excavators | Excavator screening bucket | Reinforced edges improve impact resistance |
Q1: What makes a flip screen different from a regular screening bucket?
A: Flip screens rotate in both directions and can self-clean, which is especially efficient when working with sticky materials.
Q2: What scenarios are skid steer screening buckets best suited for?
A: They are ideal for landscaping, urban demolition, and agricultural soil screening where space and efficiency are key.
Q3: How can I confirm if a loader screener is compatible with my equipment?
A: Check hydraulic flow rate, machine weight, and connector sizes. Ask your supplier for a compatibility list.
Q4: Do skid steer screening buckets for sale usually come with quick-attach systems?
A: Most do, but not all. Confirm specifications before purchase to avoid installation issues.
FlipScreen Maintenance Manual, FlipScreen Inc., 2023
Bobcat Equipment Maintenance Guide, Bobcat Company, 2024
Construction Equipment Best Practices, Construction Journal, 2022
Since 2013, I have been working full-time in the construction machinery industry, specializing in earthmoving attachments, particularly rotating screening buckets that are frequently used in demanding conditions. The insights in this article come from real project experience aimed at helping you save time and reduce costs.
